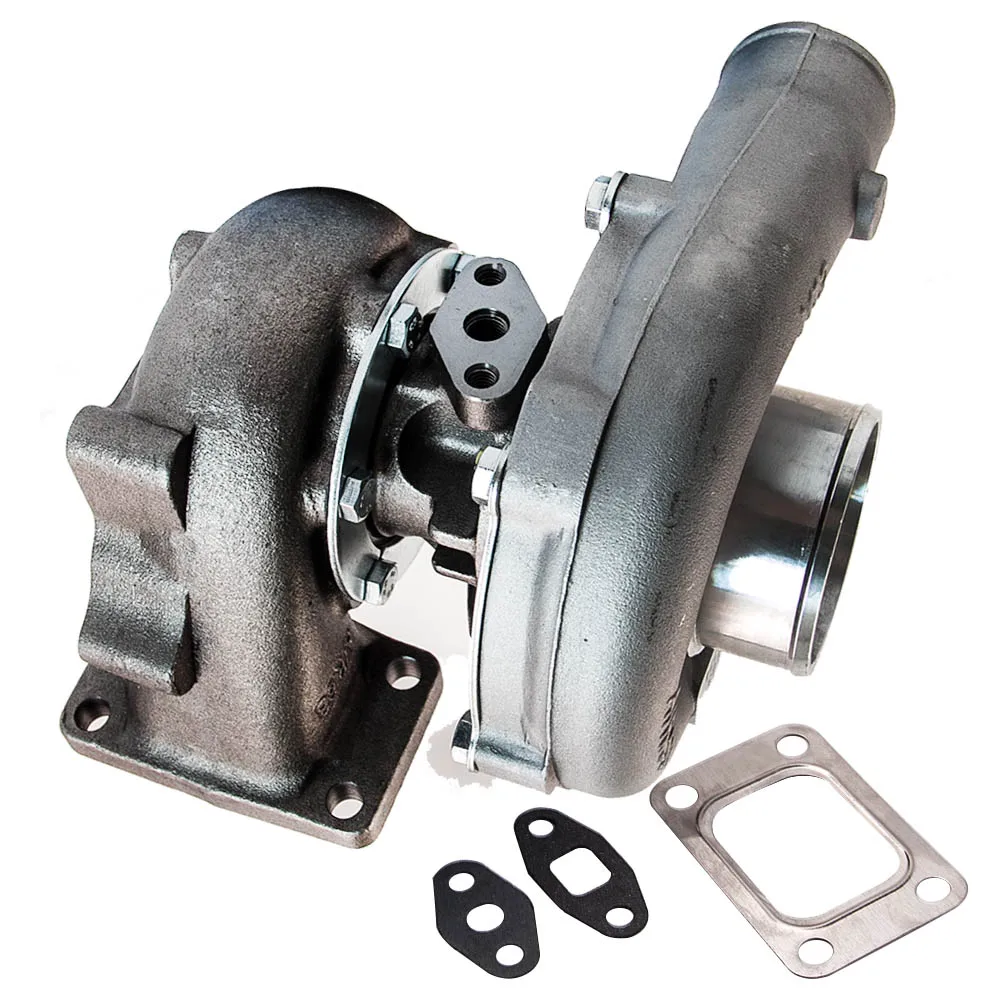

T3 2 T3/T4 GT35 GT3582 a/r0.50 a/r 0.63 T3 flange 4 bolts Journal bearing water and oil cooled turbo turbocharger

T3 2 T3/T4 GT35 GT3582 a/r0.50 a/r 0.63 T3 flange 4 bolts Journal bearing water and oil cooled turbo turbocharger
  • Продавецgetbestoffers.info
  • Список ценUS $287.30piece
  • Продажная ценаUS $287.30piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (123)

Oписание продукта



This turbo is an aftermarket application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Application
Perfect for all 1.6L-2.3L engines up to 150-400HP
Horse Power: Capable of Boosting Horse Power up to 400HP
Cooling Type: Oil Cooled

Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: 5 bolt Flange
Turbine Trim: 73
Turbine Inducer Diameter:  65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.57
Compressor Trim: 44
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Wet Float Bearing
Warranty: 1 Year

Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us

* This is an aftermarket application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)



Compatible Number:

Turbolader, Abgasturbolader, Turbocompresor
turbocharger, exhaust-gas turbocharger, exhaust turbocharger,
turbocharged motor, turbocharger motor, turbocharger engine,
Turbo Charger, turbocompresores del extractor
Turbocharger, Turbine, turbocompressori di scarico
Turbocompresseur, turbocompresseurs dechappement

Key Features

- OEM specs coincidence to ensure the perfect fitment to the related parts

- Material qualification for durable and reliable use

- Multi-Discipline tests, like balance, housing durability, wheel load limits, sealing, etc. are carried to enhance the quality of every unit

- Accuracy producing on all procedures to reduce possible metallic contacts under different condition

- Large range of turbochargers for easily locate the turbo with the target horse power and size you need from us

- Quality fully guaranteed and professional installation highly recommended
