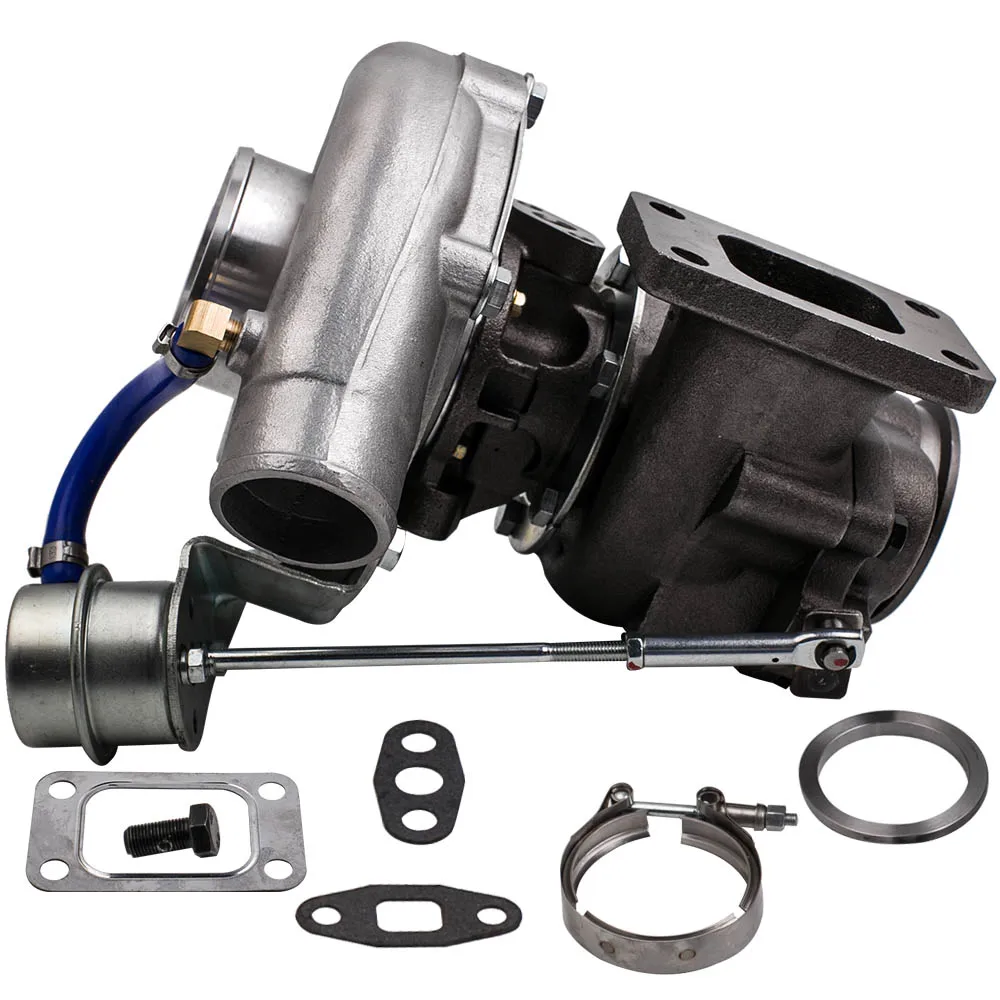

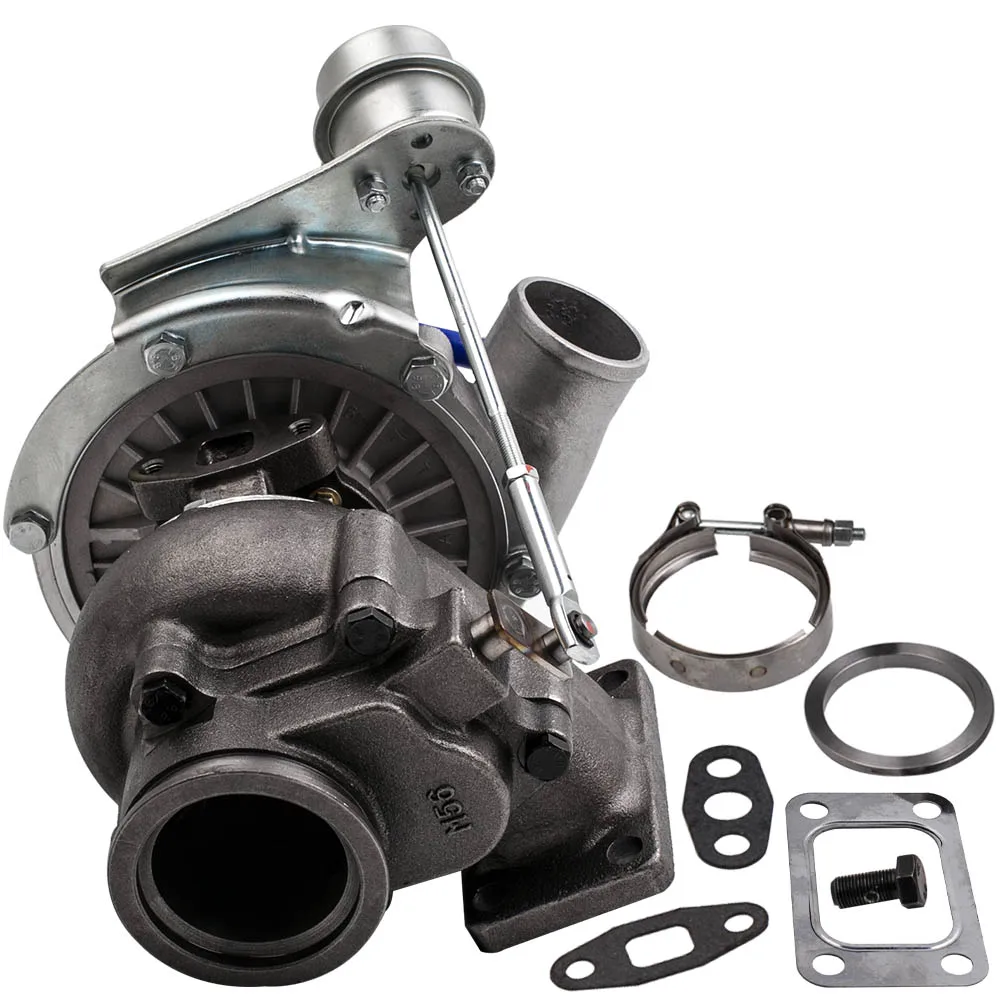

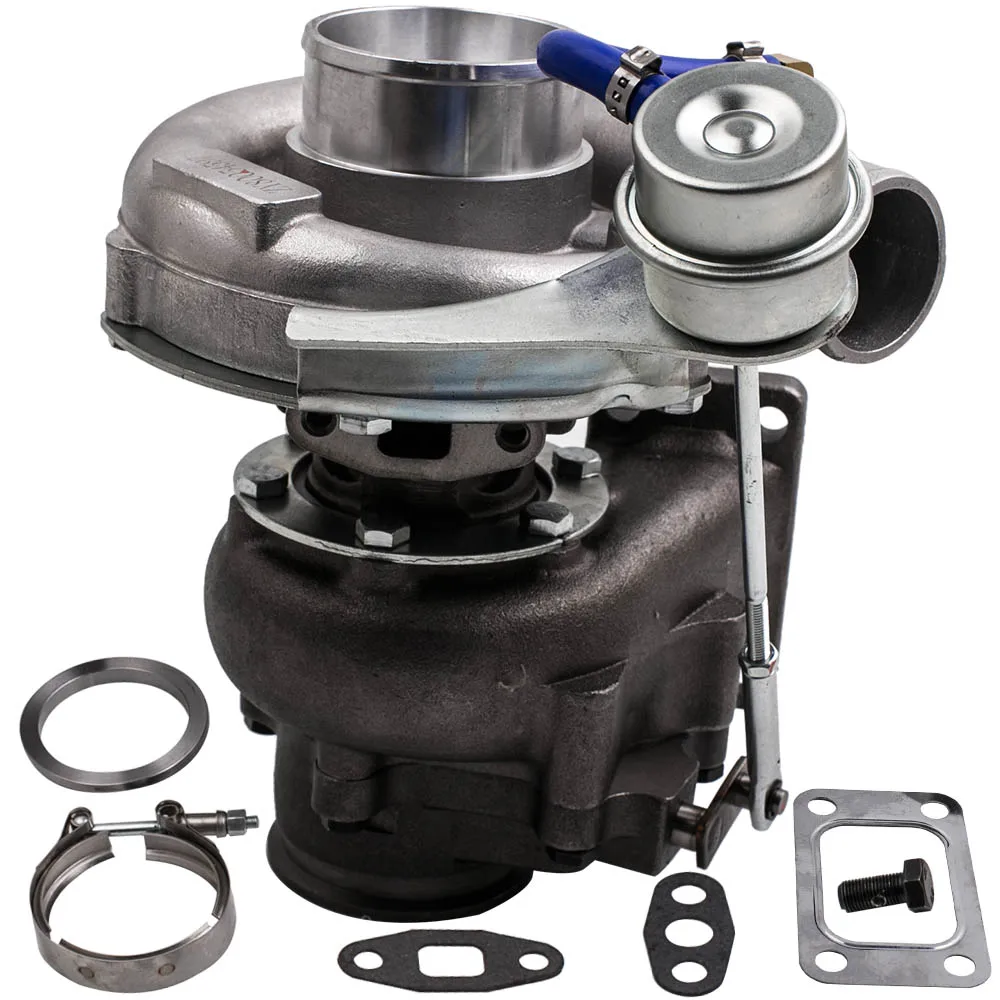

T04E T3 T4 Turbo .63 A/R 44 Trim Universal Turbocharger Compressor Stage III Wastegate V Band Flange Oil Cold 420HP 2.0 3.5L

T04E T3 T4 Turbo .63 A/R 44 Trim Universal Turbocharger Compressor Stage III Wastegate V Band Flange Oil Cold 420HP 2.0 3.5L
  • Продавецgetbestoffers.info
  • Список ценUS $141.51piece
  • Продажная ценаUS $141.51piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (821)

Oписание продукта





This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Application
Perfect for all 4 or 6 CYL, 2.0L-3.5L engines
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled

Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Turbine Trim: 73
Turbine Inducer Diameter:     65.5    mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63
Compressor Trim: 55
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: 1 Year
Internal Wastegate: Yes

Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us   .

* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)



- OEM specs coincidence to ensure the perfect fitment to the related parts

- Material qualification for durable and reliable use

- Multi-Discipline tests, like balance, housing durability, wheel load limits, sealing, etc. are carried to enhance the quality of every unit

- Accuracy producing on all procedures to reduce possible metallic contacts under different condition

- Large range of turbochargers for easily locate the turbo with the target horse power and size you need from us

- Quality fully guaranteed and professional installation highly recommended
