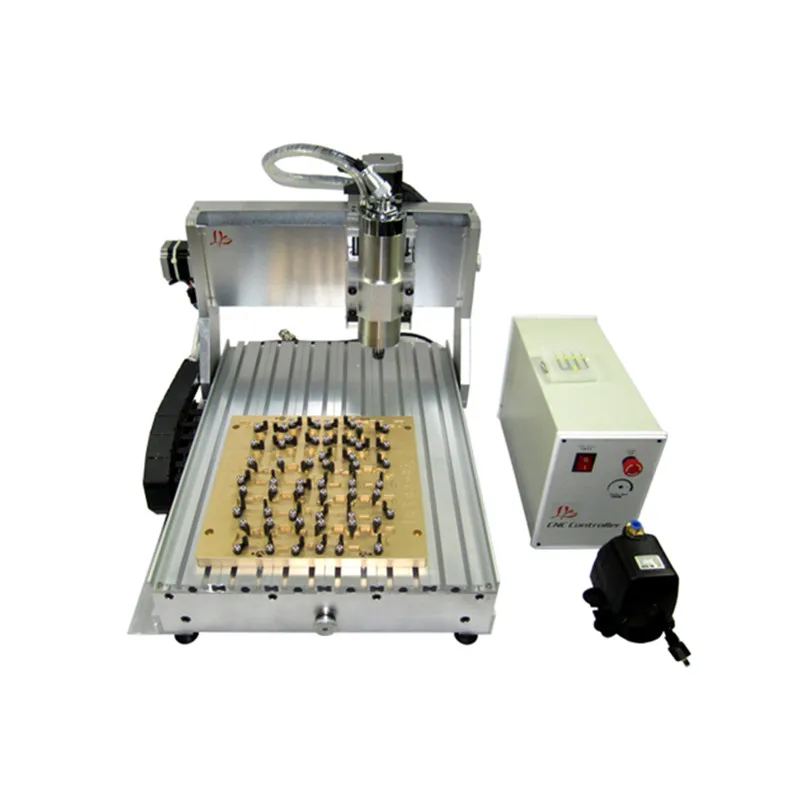

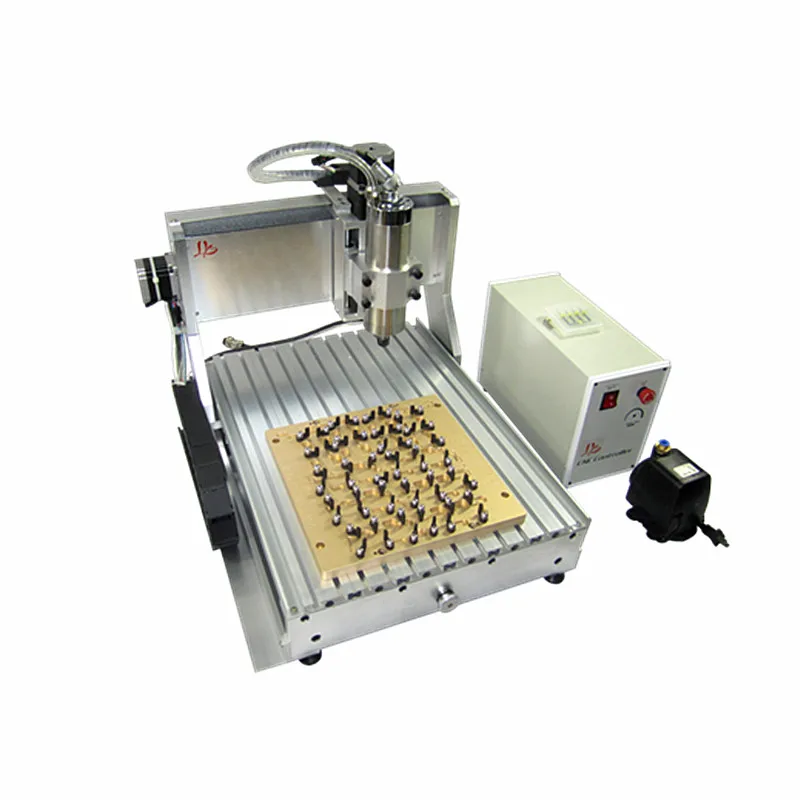

IC CNC 3040 Router Milling Polishing Engraving Machine for iPhone 4 4s 5 5s 5c 6 6+ 6s 6s+ 7 7 plus Chips Main Board Repair





Introduction

Perfectly combined producs of BGA & CNC. CNC tech applied in BGA repair industry, make mobile repairing become more easier for CNC field users, can get more broad apply area

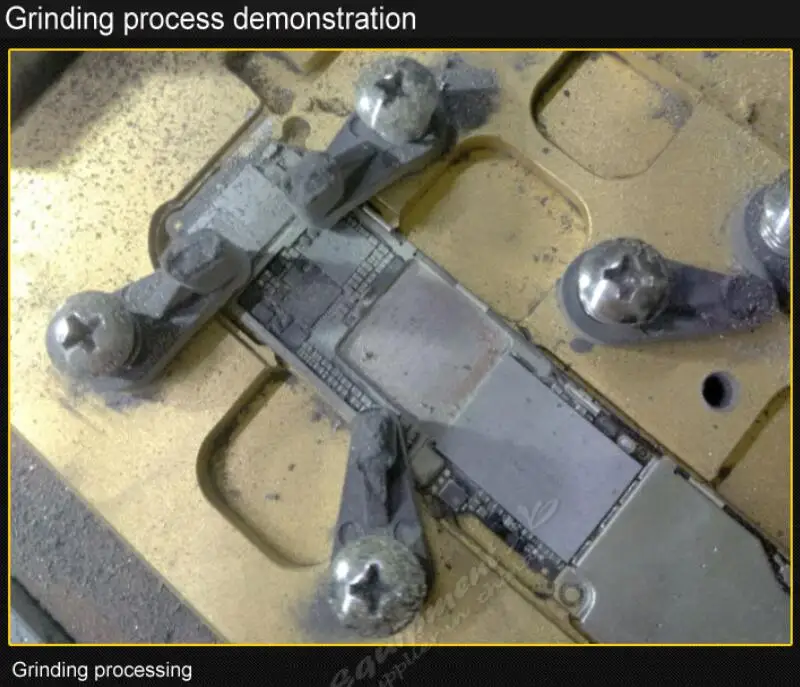

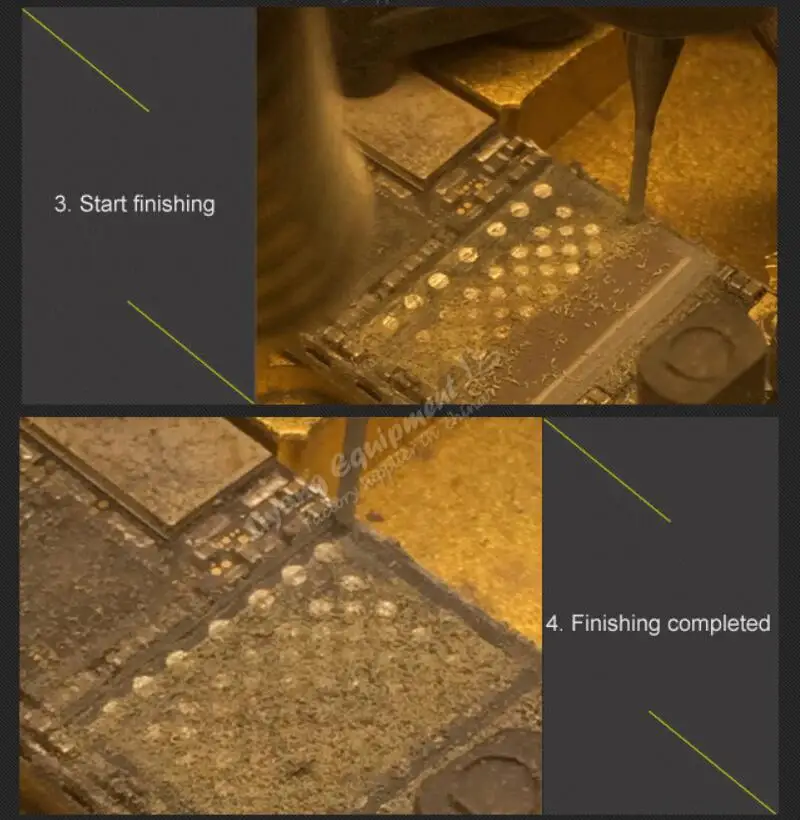

This item is perfect to grind and remove the CUP, HHD, WIFI, FONT chips in iPhone series mobile phone without any damage in the board. It is effective machine to help you repair the iPhone 4, 4S, 5, 5C and 5S. You can use the soldering station to solder a good chip in the board after grinding. Great grinding machine in mobile phone repairing and refurbishing
CNC 3040 IC cnc router (2)

RE:

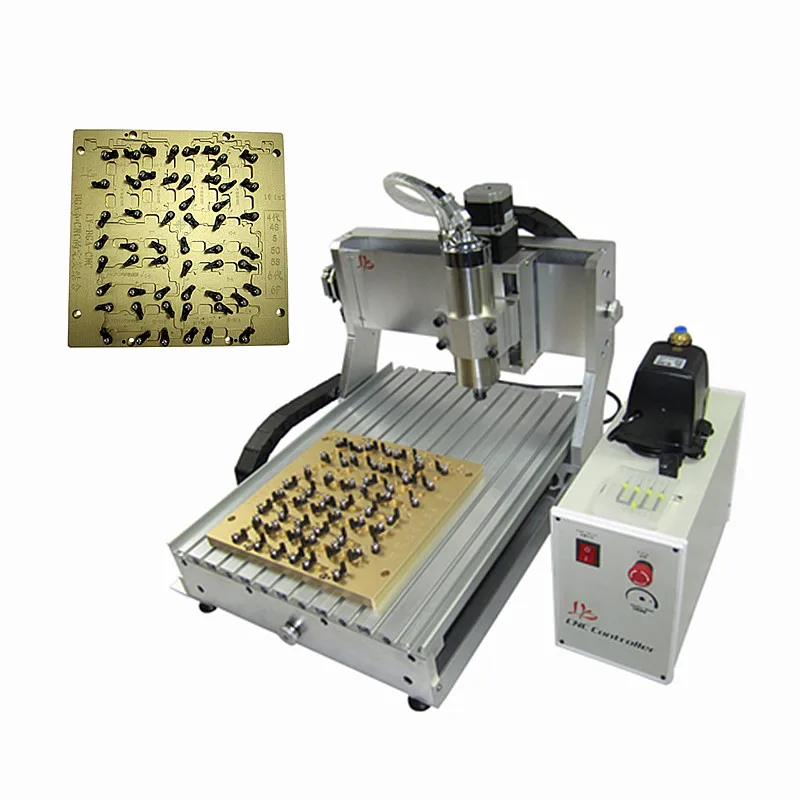

The machine standard with 2 pcs mould for iPhone 4 4s 5 5s 5c 6 6+ 6s 6s+ 7 7 plus .

Mould for iPhone 4 4s 5 5s 5c 6 6+ with data.

Mould for iPhone 6s 6s+ 7 7 plus without data. buyer need to write Code by themself.



CNC 3040 IC cnc router (5)6S 6S+ 7 7+

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty.


Technical Parameters

Machine Dimensions:

 600X510X480mm

Rack material:

 6061 and 6063 Hard aluminum alloy
 (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

 400X300mm

Z-Axis Stroke:

 80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

 ≤80mm

Rail type:

 Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

 Ball screw 1605, Pitch 4mm

Spindle motor:

 1.5KW water cooling spindle , 0-24000r/min

Collet type:

 ER11,1/8"(3.175mm) Collet

Stepper motor and drive:

 two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed:

 4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

 0.03mm

Communication interface:

 Parallel port

Software Compatability:

 English

Command code:

 G code/.nc/.ncc/.tab/.txt

Machine weight:

 55kg









The machine already assembled & tested well,
can directly use after take them out from package



Packing list

1× Engraving machine with 2pcs mould
1× Control box
1× Power cable
2× Data cables

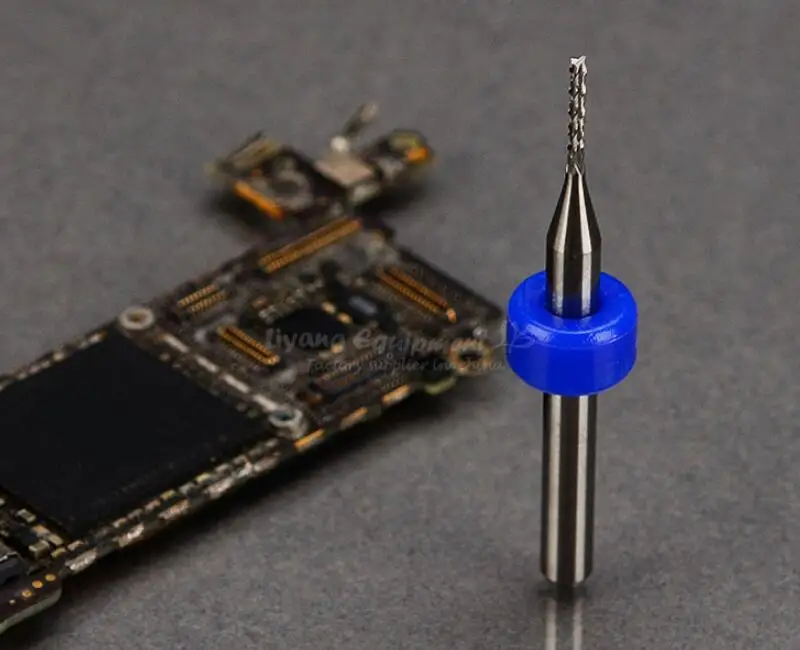

1× Driling tips (10pcs)
1x water pump
1×Control card
1×Dust Collector
2×Mould   (1 pcs mould for 4 4s 5 5s 5c 6 6+. 1 pcs mould for 6s,6s+,7,7+)
